Arc Flash Safety Guide for Risk Assessment, PPE and Prevention in 2026

Why Arc Flash Safety Demands More Than PPE

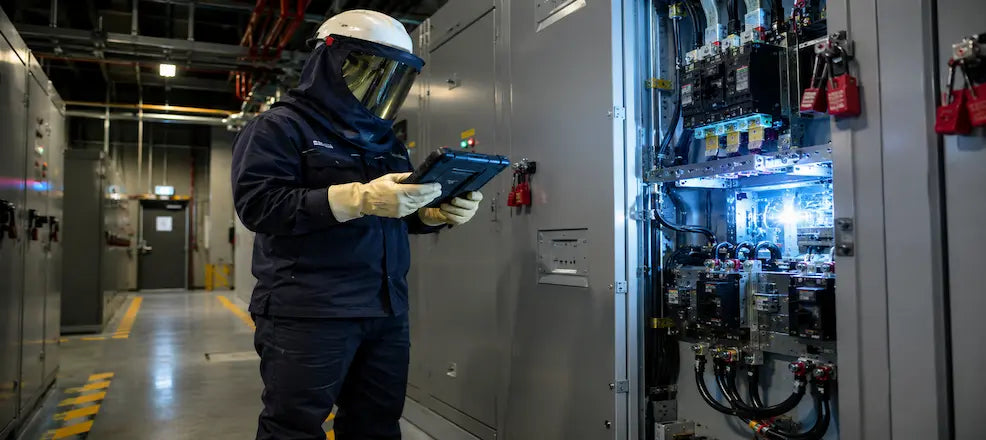

Arc flash safety begins with eliminating exposure and assessing the task—not simply putting on an arc flash suit. A technician preparing to inspect switchgear, troubleshoot a motor control centre, or reset industrial electrical equipment may view the task as routine, yet the equipment still presents severe thermal, pressure, shock, and projectile hazards. Workers and supervisors can strengthen hazard-recognition and isolation knowledge through structured electrical safety training to better understand these dangers before work begins.

What Is an Arc Flash and Why Is It Dangerous?

An arc flash is a rapid release of thermal energy caused when electrical current travels through air between conductors or from a conductor to ground. It can generate extreme heat, intense light, molten metal, and pressure effects capable of causing severe burns and equipment damage. In essence, an arc flash is an electrical explosion, while the related pressure wave is generally described as an arc blast. OSHA's official guidance explains the thermal, pressure, sound, and projectile dangers associated with these events.

Arc Flash, Arc Blast and Electric Shock: What Is the Difference?

Arc Flash

Thermal energy, intense light, and molten material

Arc Blast

Pressure wave, sound, debris, and physical force

Electric Shock

Current passing through the body

Important Warning: Arc-rated clothing protects against defined thermal exposure; it does not automatically provide shock protection or complete protection from blast pressure and flying debris.

What Causes an Arc Flash?

Common initiating conditions include:

• Accidental tool contact
• Loose connections
• Damaged insulation
• Contamination, moisture, or conductive dust
• Equipment failure
• Incorrect switching
• Dropped components
• Poor maintenance
• Animals or foreign objects
• Human error during testing or troubleshooting

Higher-risk tasks include opening equipment doors, racking breakers, voltage testing, troubleshooting, and working on equipment with signs of deterioration. Voltage alone does not determine severity; multiple factors contribute to arc flash likelihood and intensity.

How Do You Perform an Arc Flash Risk Assessment?

An arc flash risk assessment determines whether an arc flash hazard exists, estimates the potential severity and likelihood of exposure, and identifies the controls required before work begins.

Step 1: Define the Task and Exposed Worker

Identify the exact task, who will perform it, whether conductors or circuit parts may be exposed, and whether the worker is qualified for that equipment and task.

Step 2: Determine Whether Energised Work Is Necessary

The safest approach is generally to place equipment into an electrically safe work condition. Under OSHA 29 CFR 1910.333, exposed live parts generally must be de-energised before employees work on or near them unless specific exceptions apply.

Step 3: Collect Accurate Electrical-System Data

Gather information on:

• Voltage
• Transformer information
• Conductor sizes and lengths
• Available fault current
• Protective-device settings
• Clearing times
• Equipment type
• Working distance
• Enclosure configuration
• Current single-line diagrams

Step 4: Complete the Engineering Analysis

IEEE 1584-2018 provides mathematical models used to predict incident energy and arc flash boundaries for covered systems. IEEE 1584.1-2022 addresses study scope and deliverables, while IEEE 1584.2-2025 adds guidance and checklists for collecting data for certain systems at 1,000 V and below.

Step 5: Assess Likelihood as Well as Severity

High incident energy does not automatically mean an arc-producing event is likely during every task. Consider equipment condition, evidence of failure, task type, maintenance status, whether covers are open, and whether conductors are exposed.

Step 6: Document Controls and Residual Risk

Record required isolation, work boundaries, engineering controls, safe-work procedures, PPE, authorisation requirements, and emergency arrangements.

OSHA, NFPA 70E, IEEE 1584 and IEC 61482 Explained

Regulatory Framework

OSHA: Enforceable U.S. workplace regulations

NFPA 70E: Electrical safe-work-practice standard

IEEE 1584: Engineering calculation methodology

IEC 61482: Arc-protective clothing requirements and testing

As of July 2026, NFPA 70E 2027 is the current edition; however, actual adoption and contractual application should be verified with your organisation and regulatory authorities to ensure compliance with applicable standards.

How Is Arc Flash PPE Selected?

Arc flash PPE must be selected from the completed risk assessment so that the protection provided is appropriate for the predicted exposure and the work being performed. Selection should consider the incident-energy method or applicable PPE-category method where permitted, arc rating in cal/cm², and specifications such as ATPV, EBT, and ELIM values.

Essential PPE components include:

• Arc-rated shirt and trousers or coverall
• Arc-rated suit
• Face shield or hood
• Balaclava
• Safety glasses
• Hearing protection
• Voltage-rated gloves
• Leather protectors
• Appropriate footwear

Compatibility between garments, face protection, and other PPE is critical. Shock-protection equipment must be included where a separate shock hazard exists.

Important Statement: PPE is the final protective layer. It must never replace de-energisation, isolation, or engineering controls. IEC 61482-2 specifies requirements and test methods for clothing intended to protect workers from electric-arc thermal hazards; it does not cover electric-shock protection.

How Can Employers Prevent Arc Flash Incidents?

Arc flash prevention relies on the hierarchy of controls, moving from most to least effective.

Elimination

• De-energise equipment
• Redesign work so exposure is unnecessary
• Move testing points outside hazardous enclosures

Engineering Controls

• Remote switching
• Remote breaker racking
• Current-limiting fuses
• Faster protective-device operation
• Arc-flash relays
• Zone-selective interlocking
• Energy-reducing maintenance switches
• Arc-resistant equipment
• Increased working distance

Administrative Controls

• Qualified-person requirements
• Energised-work justification
• Job briefing
• Permit systems
• Restricted access
• Written procedures
• Competency-based training
• Contractor coordination
• Inspection and maintenance schedules

OSHA recommends first attempting to eliminate arc exposure and then reducing remaining exposure through engineering design and work practices.

De-Energisation, Lockout/Tagout and Absence-of-Voltage Testing

Establishing an electrically safe work condition requires following an essential sequence:

1. Identify every energy source
2. Interrupt load current correctly
3. Open disconnecting devices
4. Release or restrain stored energy
5. Apply locks and tags
6. Verify the tester
7. Test for absence of voltage
8. Reverify the tester

Equipment that has merely been switched off is not necessarily safe. OSHA requires appropriate lockout/tagout and testing by a qualified person before exposed parts are treated as de-energised. The Electrical Safety and Lockout/Tagout course helps learners understand hazard recognition, energy isolation, and disciplined safe-work procedures.

When Should Arc Flash Labels and Studies Be Updated?

Arc flash reviews may be needed after:

• Utility changes
• Transformer replacement
• Protective-device setting changes
• Equipment modifications
• Added generation or battery systems
• Major maintenance changes
• Discovery of inaccurate field data
• Applicable standard or company-program changes

Avoid publishing a universal update interval without confirming the applicable standard and jurisdiction.

What Should Workers Do After an Arc Flash Incident?

Immediate response priorities include:

• Do not approach until electrical energy is controlled
• Activate emergency procedures
• Call qualified emergency responders
• Provide first aid only when it is safe and within training
• Treat burns and blast injuries as urgent
• Preserve evidence for investigation

Arc Flash Prevention Checklist

Use this checklist before beginning energised work:

• Is energised work justified?
• Is the one-line diagram accurate?
• Has the risk assessment been completed?
• Is the equipment properly maintained?
• Are boundaries established?
• Are workers qualified?
• Is the PPE suitable and inspected?
• Is LOTO applied?
• Has absence of voltage been verified?
• Is emergency support available?

Build a Stronger Electrical Safety Programme

Effective arc flash safety depends on a complete system: accurate assessment, hazard elimination, reliable electrical isolation, engineering controls, competent workers, and correctly selected PPE. Professionals responsible for electrical work can strengthen their practical knowledge through the Electrical Safety course.
