Machine Guarding and Lockout Tagout Explained for Safer Workplaces

What Is the Difference Between Machine Guarding and Lockout Tagout?

Machine guarding protects workers from moving parts and other machinery hazards during normal operation. Lockout/tagout protects workers during servicing and maintenance by isolating energy sources, applying locks and tags, releasing stored energy and verifying that the machine cannot restart. The two controls are complementary, not interchangeable. Machine guarding creates a physical barrier during production, while lockout/tagout ensures complete energy isolation when employees service or maintain equipment.

What Is Machine Guarding?

Machine guarding is a physical or safety-control method that prevents workers from reaching hazardous machine areas. These guards protect operators and other employees from contact with dangerous moving parts and flying materials. Machine guarding addresses multiple hazard types, including the point of operation, ingoing nip points, rotating parts, reciprocating or transverse movement, and flying chips, sparks or ejected material. OSHA's general machine-guarding requirements under 1910.212 mandate that one or more guarding methods protect operators and all other employees from these types of hazards. Proper machine guarding is fundamental to workplace safety in manufacturing, processing and assembly operations.

Which Machinery Hazards Require Safeguarding?

Machinery presents numerous hazards that require proper safeguarding measures:

• Crushing and pinch points — areas where body parts can be caught and crushed between machine components
• In-running nip points — where rotating parts or converging surfaces create trapping hazards
• Cutting and shearing — exposed blades or shearing surfaces that can cause lacerations
• Entanglement with rotating parts — hair, clothing or limbs caught in spinning shafts or wheels
• Amputation hazards — sharp or high-speed components capable of severing fingers, hands or limbs
• Drawing-in or trapping hazards — augers, rollers and conveyor systems that pull material inward
• Impact and ejected-material hazards — flying debris, sparks or material ejected from machinery
• Unexpected movement — machines that restart without warning during maintenance or adjustment

Loose clothing, gloves, jewellery and long hair may increase entanglement risks around exposed rotating components. Workers should be educated on these hazards and trained to recognize danger zones.

What Are the Main Types of Machine Guards?

Fixed Guards

Fixed guards create a permanent physical barrier and generally require tools for removal. These are often welded or bolted directly to the machine frame and cannot be easily bypassed. Fixed guards are highly effective for stationary hazards and require minimal maintenance, making them one of the most reliable safeguarding solutions available.

Interlocked Guards

Interlocked guards incorporate a safety mechanism that opening or removing the guard triggers a safety-related stop or prevents hazardous operation. When the guard is opened, the machine immediately ceases operation, preventing workers from accessing moving parts. This technology is ideal for maintenance access points and areas requiring frequent inspection.

Adjustable and Self-Adjusting Guards

Adjustable guards allow operators to position protective barriers for different materials or products while maintaining safeguarding effectiveness. Self-adjusting guards automatically move with the workpiece, providing continuous protection without manual adjustment. These guards are particularly useful in applications with varying product sizes or shapes.

Safeguarding Devices

Modern machinery also employs advanced safeguarding technologies:

• Safety light curtains — infrared beams that detect worker presence and halt machine operation
• Pressure-sensitive mats — floor sensors that stop machinery when stepped upon
• Two-hand controls — require simultaneous operator input to activate hazardous functions
• Safety laser scanners — advanced detection systems that monitor dangerous zones
• Pullback or restraint devices — mechanically withdraw hands from danger zones during operation
• Safety-rated interlocks — electronically verified safety systems that prevent unsafe machine states
• OSHA's machine guarding eTool provides practical guidance on selecting the right safeguarding method for specific machine types, including nip points, rotating parts, and points of operation.

Important reminder: An emergency-stop button is not a substitute for a properly designed machine guard or an energy-isolation procedure. Emergency stops provide an additional layer of protection but cannot replace primary safeguarding measures.

Professionals responsible for inspections, maintenance or risk assessments can develop practical machinery and equipment safety skills through specialized training in occupational safety standards and best practices.

Key Takeaway: Machine guarding controls operational exposure; LOTO controls hazardous energy when workers enter, reach into or service the danger zone. Together, these complementary safety practices create comprehensive protection in industrial environments.

When Is Lockout Tagout Required?

Lockout tagout is generally required when workers remove or bypass a guard, place part of the body inside a danger zone, perform maintenance, repair or adjustment, clear a blockage or jam, clean internal machine areas, replace blades, tools or components, or work where unexpected start-up could cause injury. Applicability depends on the task, industry, equipment and governing jurisdiction. Employers must carefully evaluate each work scenario to determine whether energy isolation is necessary before maintenance or service work begins.

What Are the Steps of Lockout Tagout?

1. Prepare for Shutdown

Identify every energy source, isolation point and stored-energy hazard associated with the equipment. Review all machine documentation and manufacturer specifications to ensure complete hazard recognition.

2. Notify Affected Employees

Tell operators and nearby workers why the machine will be unavailable. Clear communication prevents accidental start-up attempts and allows prior operations to be completed safely.

3. Shut Down the Equipment

Use the manufacturer's normal stopping procedure to allow the machine to come to rest using standard controls.

4. Isolate Every Energy Source

Operate disconnects, valves, breakers or other energy-isolating devices to separate the machine from all power sources including electrical, hydraulic, pneumatic, mechanical and gravitational energy.

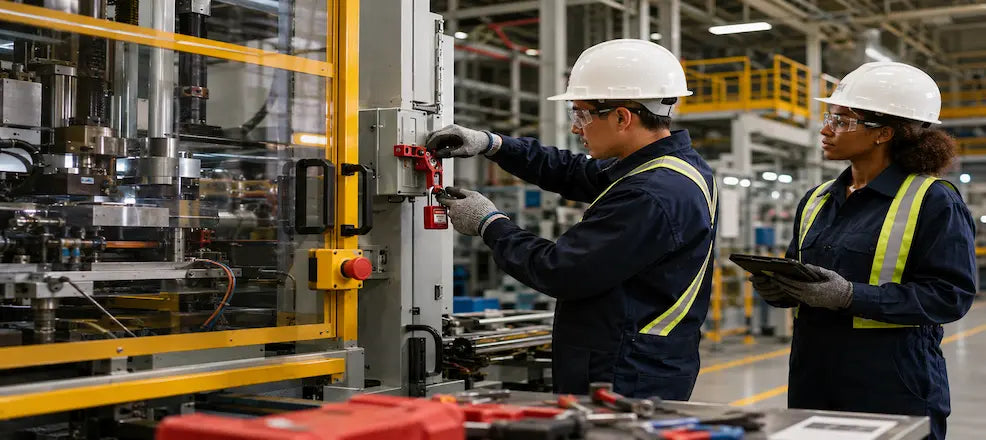

5. Apply Personal Locks and Tags

Each authorised worker applies an identifiable personal lock according to the organisation's procedure. Locks must be unique and removable only by the individual worker.

6. Release or Restrain Stored Energy

Discharge capacitors, bleed pressure, block raised components and secure springs or moving parts to prevent unexpected energy release during work.

7. Verify Zero Energy

Attempt a controlled start and use suitable testing methods before beginning work. Turning off a control button does not prove that hazardous energy has been isolated.

How Should a Machine Be Safely Restarted?

Safe restart requires systematic procedures. Inspect the work area thoroughly. Replace guards and safety devices to their original positions. Remove tools and temporary blocks used during maintenance. Confirm that employees are clear of the equipment. Ensure locks are removed under the authorised procedure, with each worker removing only their own lock. Notify affected employees that the machine will restart. Restore energy in a controlled sequence according to equipment specifications. Test the machine before normal production resumes. OSHA includes specific requirements for releasing equipment from lockout/tagout before energy is restored.

Who Is Responsible for LOTO Safety?

Employer

Develops the hazardous-energy control programme and ensures adequate resources and training are available.

Authorised Employee

Applies LOTO and performs the servicing work while following established procedures. Each authorized employee must be properly trained and competent.

Affected Employee

Operates or works near equipment being serviced and must understand lockout protocols and procedures.

Supervisor

Verifies procedures, resources and competency before work begins and ensures compliance throughout the task.

HSE Professional

Supports risk assessment, auditing and corrective action to maintain programme effectiveness and identify improvement opportunities.

Contractor

Follows coordinated site and equipment-specific procedures established by the facility to ensure consistent safety practices.

Machine Guarding and LOTO Inspection Checklist

• Are all danger zones identified?
• Are guards secure, undamaged and difficult to bypass?
• Do interlocks stop hazardous motion as designed?
• Are emergency stops accessible and tested?
• Are energy-isolating devices clearly labelled?
• Is there a machine-specific LOTO procedure?
• Are electrical, hydraulic, pneumatic and stored-energy sources listed?
• Can each worker apply a personal lock?
• Is zero-energy verification documented?
• Are inspection and training records current?
• Are defects reported before the machine returns to service?

What Are the Most Common Machine-Safety Mistakes?

Common errors include removing guards for convenience, defeating safety interlocks, reaching into moving equipment, treating an emergency stop as isolation, locking out only the electrical supply, forgetting hydraulic, pneumatic or gravity energy, failing to test the isolation, using one person's lock for several workers, restarting before guards are replaced, and using generic procedures that do not match the specific machine.

How Do International Machinery-Safety Requirements Differ?

OSHA requirements are legally applicable within their defined United States jurisdictions and industries. Other countries use different legal frameworks and standards. Key international references include ISO 12100 for machinery risk-assessment and risk-reduction principles, UK PUWER and HSE guidance for equipment suitability, guarding, maintenance and isolation, and national legislation in Canada, Australia, GCC countries and EU member states.

Strengthen Your Machinery and Equipment Safety Skills

Effective machine safety depends on more than recognising an exposed moving part. HSE professionals, supervisors, technicians and operators must understand hazard identification, risk assessment, safeguarding, inspection and safe maintenance. Explore the Machinery & Equipment course to strengthen the practical knowledge needed to identify hazards and support safer equipment use.

Guard the Hazard and Control the Energy

Safer machinery requires two connected controls: effective guarding during operation and verified energy isolation during servicing. Employers should assess every machine, maintain safeguards, create equipment-specific LOTO procedures and train workers for their assigned responsibilities. When the task changes, the risk assessment and safety controls must change with it. Build stronger machinery-safety knowledge with the Machinery & Equipment course.
